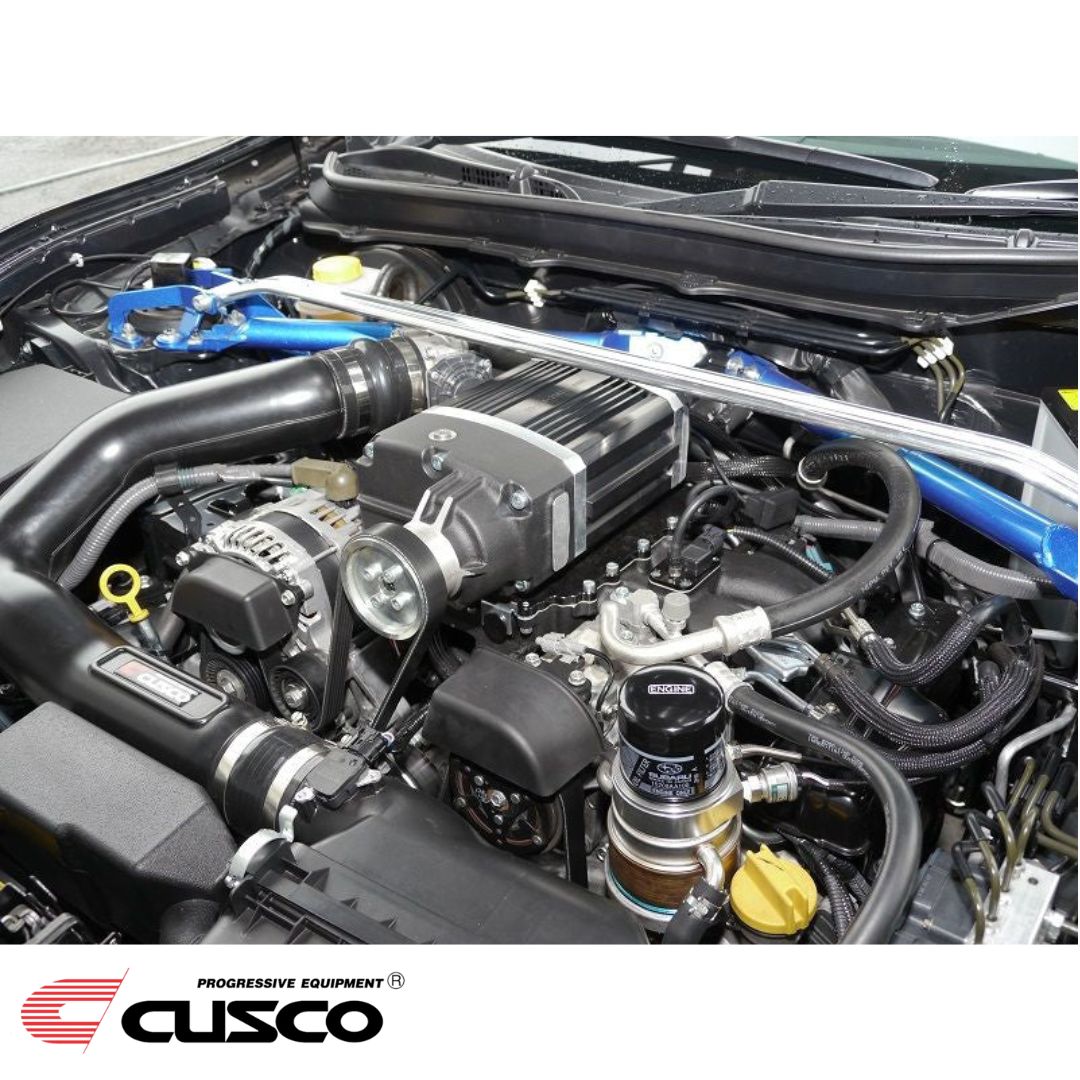

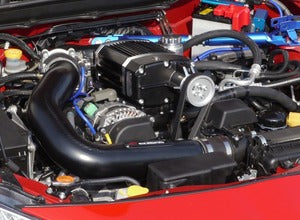

GT86/BRZ Supercharger Kit

*Note: This product is usually on back order with CUSCO, and can take anywhere from 1 week to 2 months to arrive.

Available in an intercooled, and non-intercooler version. This kit is only compatible with vehicles equipped with a manual transmission.

Linear Acceleration Similar to a 3.0 liter Engine
The Cusco Supercharger kit was developed exclusively for the ultra high compression naturally aspirated FA20 engine to further enhance the responsiveness and torque to match that of a 3.0 liter engine.

The end result is a Supercharger Kit that is completely bolt-on developed by using a highly efficient Sprintex unit as a base along with Cusco's product engineering knowledge. The new kit also has an option of including a competitively priced intercooled kit which is vital for keeping temperatures low, or a base non-intercooled kit also available.

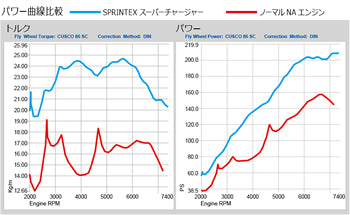

Power Data

Over a 30% increase in power output as compared to factory figures with a plentiful torque band that is usable in a dynamic range of conditions.

Cusco Supercharger Kit (Intercooled)

• Peak Power: 208PS/7400rpm　・・・32.4% gain over factory
• Peak Torque: 24.6kg・m/5600rpm　・・・43.0% gain over factory

Factory Stock

• Peak Power: 157PS/6700rpm

• Peak Torque: 17.2kg・m/6200rpm


*Results based off real world testing

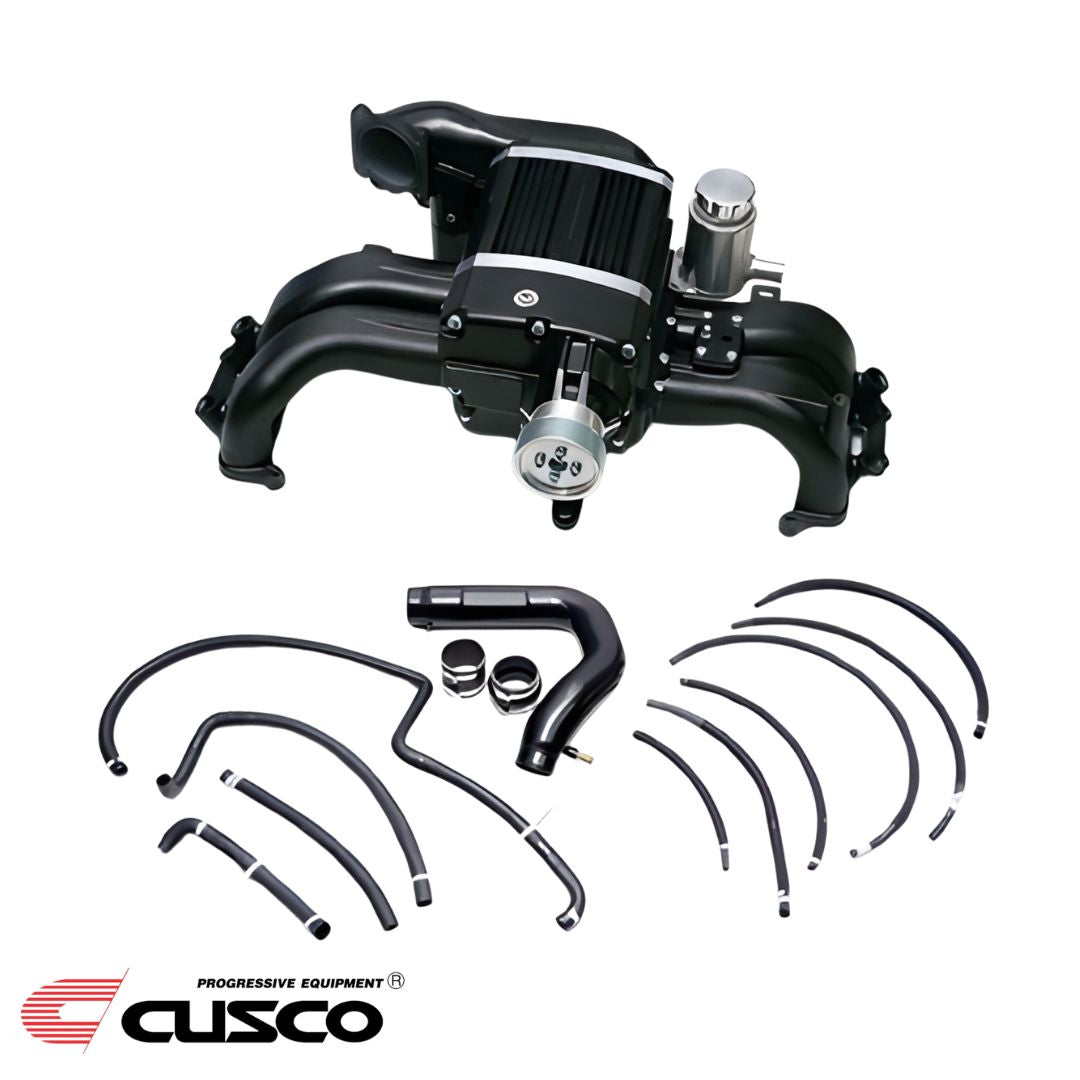

Included:

• Supercharger Body (Intake manifold design)
• Inlet pipe
• Silicone coupler
• Throttle body extension wiring
• Air pressure sensor assembly
• Air pressure sensor extension connector
• Idle pulley
• Drive belt (6PK-2615)

• Cap bolt M14xP1.5x40

• Idle pulley bracket

• O ring intake manifold assembly flange

• O ring throttle body assembly

• Vacuum switching valve assembly

• Bolt clip

Intercooler kit versions will include all of the above, plus the following:

• Water-air intercooler core (base)
• Water-air intercooler radiator bracket
• Water-air intercooler core (S/C side)
• Electric water pump
• Electric water pump harness
• Electric water pump bracket
• Coolant reservoir tank
• Coolant hose
• Hose clamp
• Bolt clip

Optional Parts Specifications:

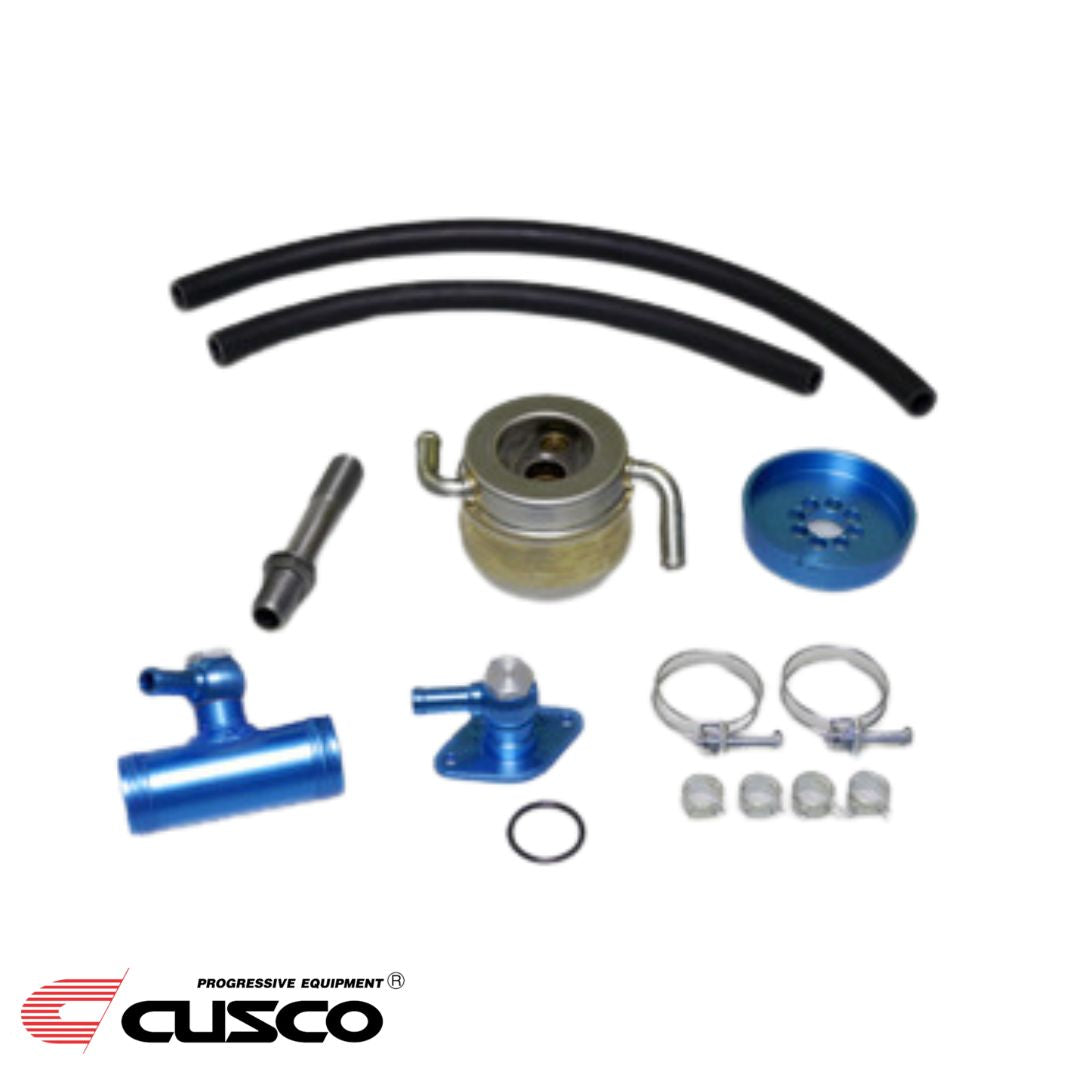

Engine Oil-Water Cooler

• The heat exchanger fits in place where the factory oil filter is located. Please check clearance issues when installing in concurrent fitment with an oil filter sandwich plate.

75mm High Boost Driven Pulley

• This item replaces the 80mm pulley that comes standard in the kit with a 75mm pulley for an increased power output. (Boost Pressure 0.6bar⇒0.7bar) Requires further tuning including fuel compensation and ignition management. Please inquire within or your local authorized dealer for consultation.

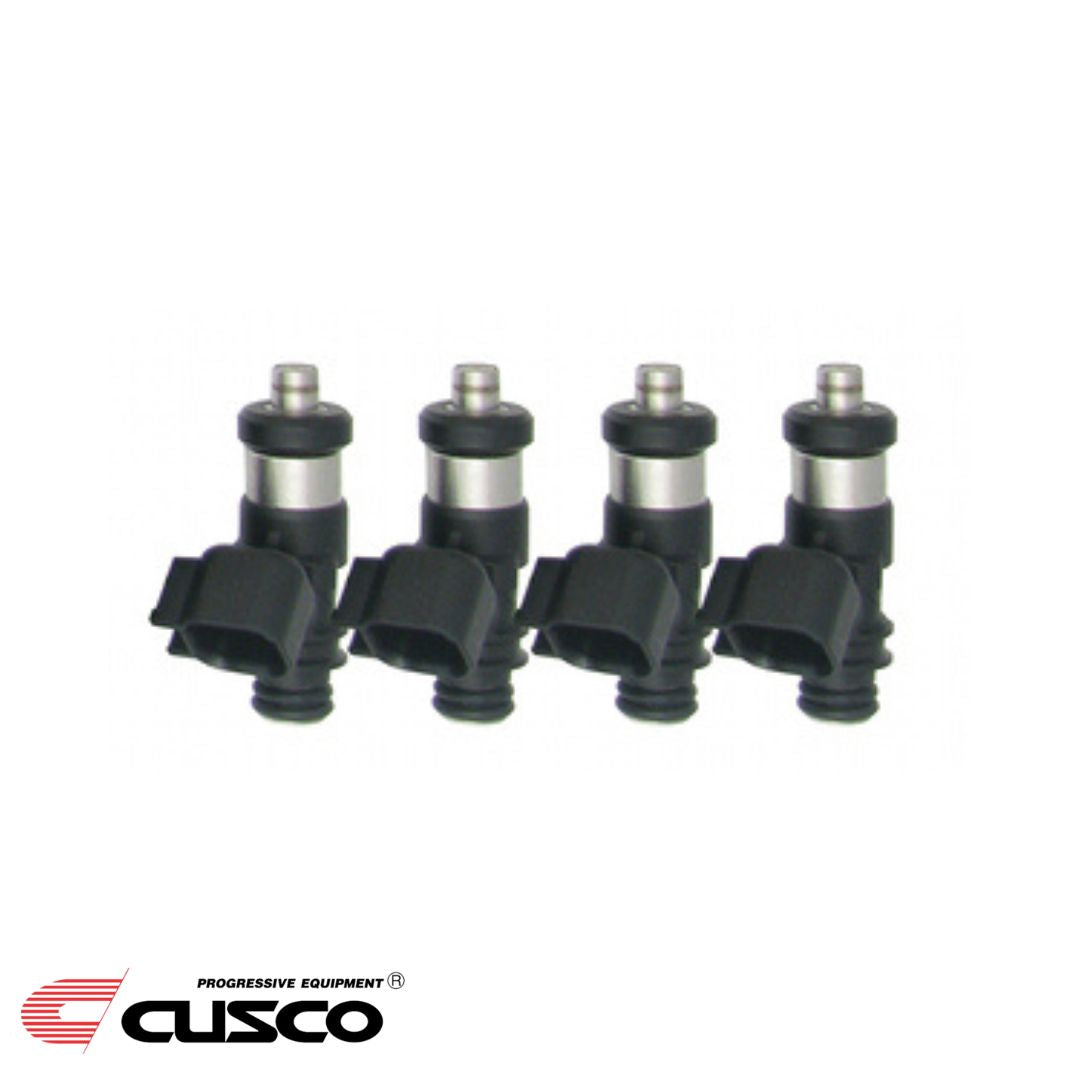

Fuel System Upgrades (Injector Upgrades 450cc, 700cc, 900cc), Fuel Pump

• Fuel supply is the key ingredient when producing more power. Cusco now proudly offers Deatschwerks fuel injectors and fuel pumps as an added option.
  3 stages of injectors are available (450cc, 700cc, 900cc)

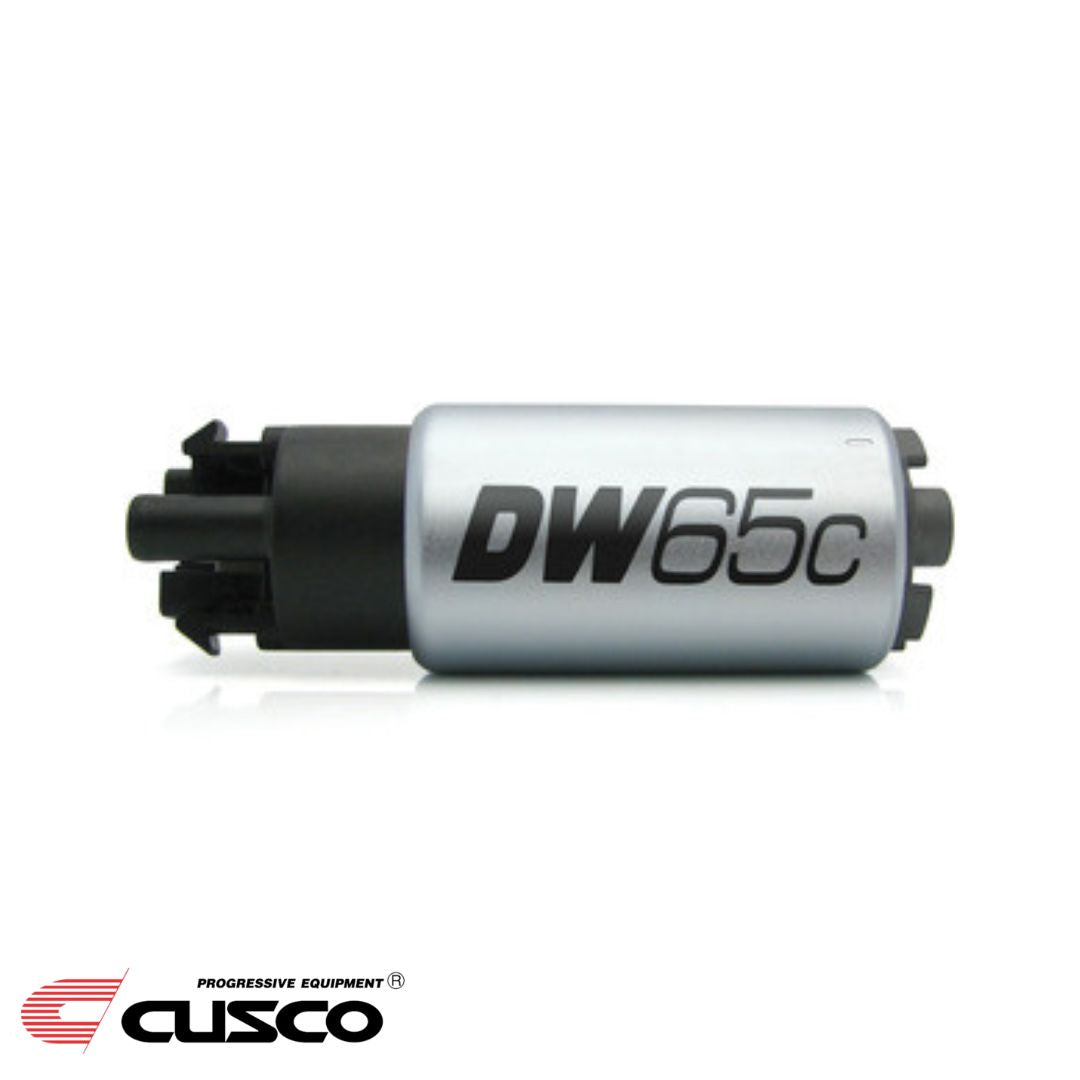

• 265L/h high flow, in-tank fuel pump provides a stable supply of fuel to the entire system.
