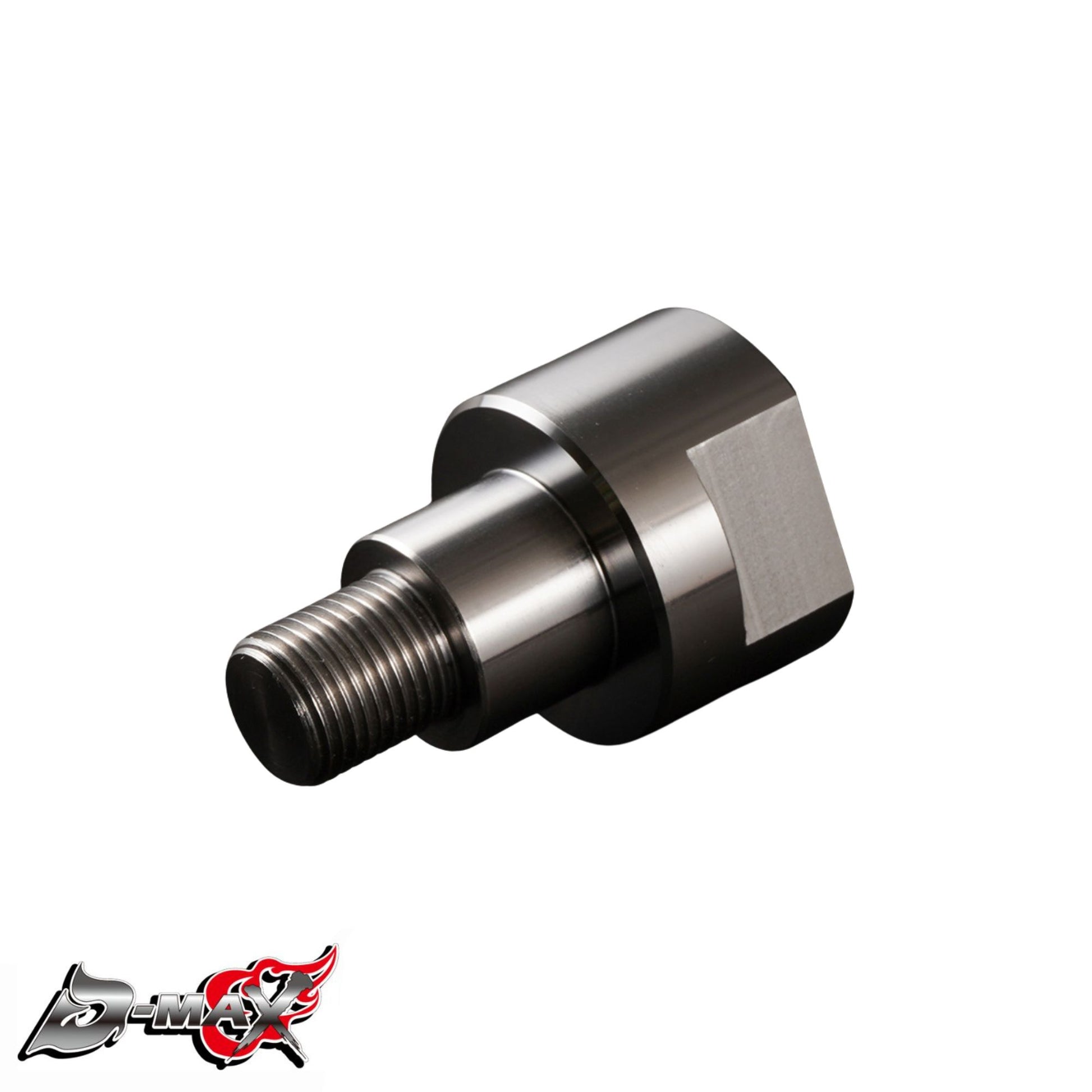

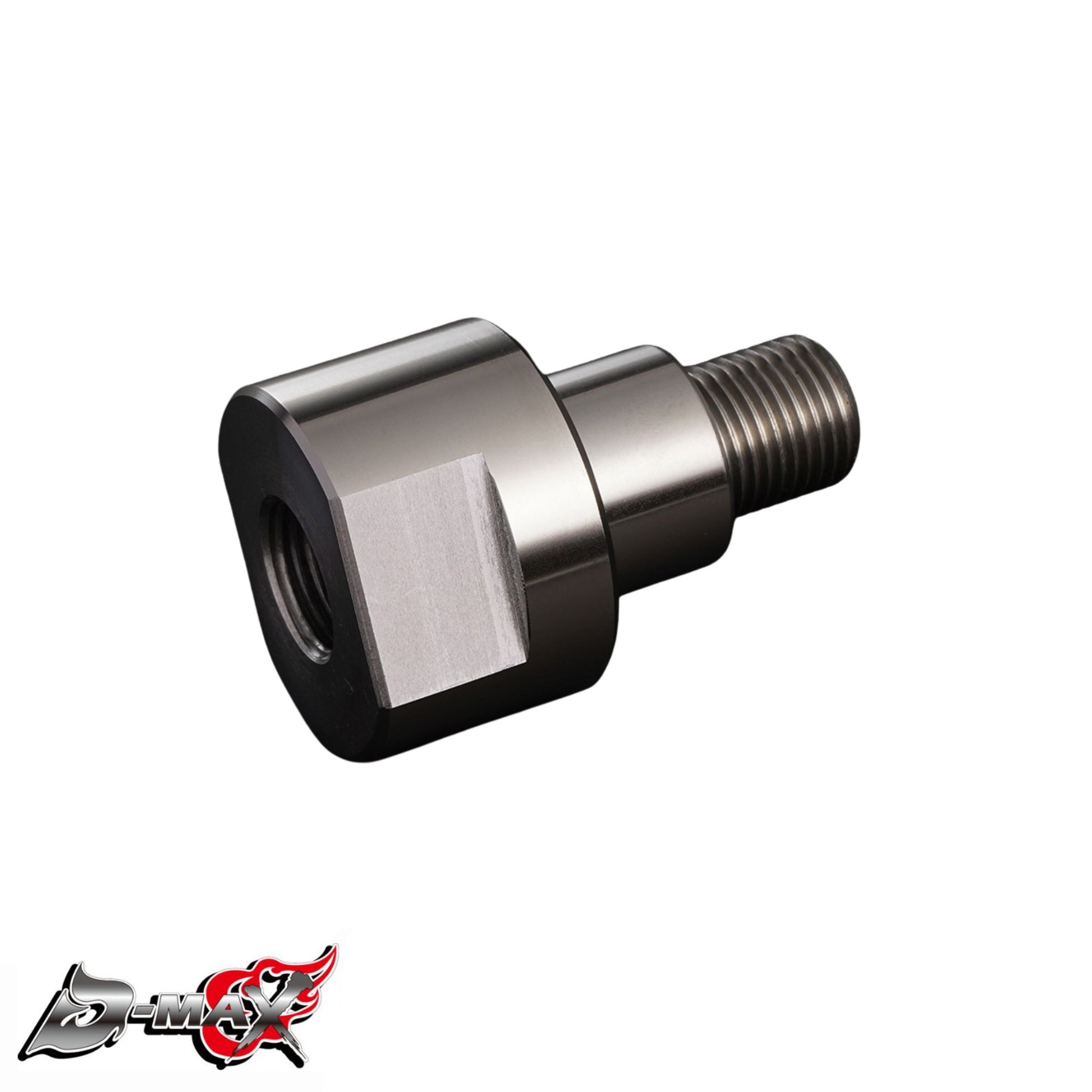

D-MAX D1SPEC "Angle UP" Steering Rack Adapters

To suit Toyota GT86 (ZN6)/GR86 (ZN8) & Subaru BRZ (ZC6/ZD8)

By installing the adapter between the steering rack and inner tie rod, it increases the travel of the steering rack and improves the steering angle. At the same time as increasing the steering angle, it also extends the tie rod, so it can compensate for the length needed when running an extended lower control arm. This is an essential item for cars that have had their front knuckles replaced.

Specifications:

• Material: S45C (Carbon Steel)
• Price is for ONE Unit. Two will be required for both sides of a single vehicle.

*For those using a "Mild" knuckle setup, only one may be required (installed on the driver's side). For aggressive Lower arm / Knuckle setups, please install on both sides

Compatible Models:

• GT86 (ZN6)
• GR86 (ZN8)
• BRZ (ZC6/ZD8)

[Notes]

*Please be sure to check the range of motion of the steering rack you are using before use. Depending on the type of steering rack, damage may occur.

*When using, be sure to use a turning angle stopper or similar to properly control the turning angle. Using without control may result in damage to the steering rack.

*When installing, apply a roll of locking agent such as Loctite to the threaded parts before installing.

*After installation, you will need to re-center your steering steering rack
