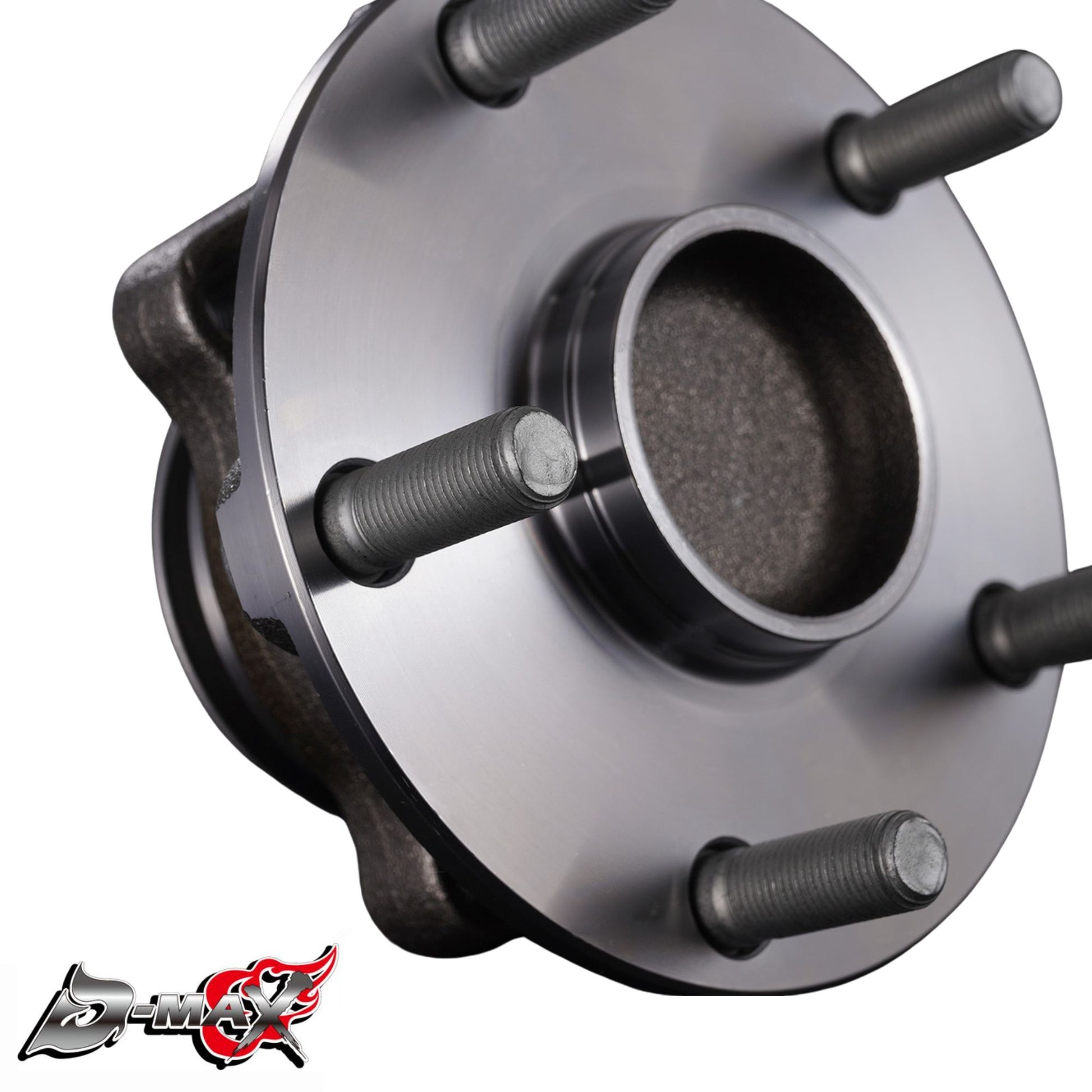

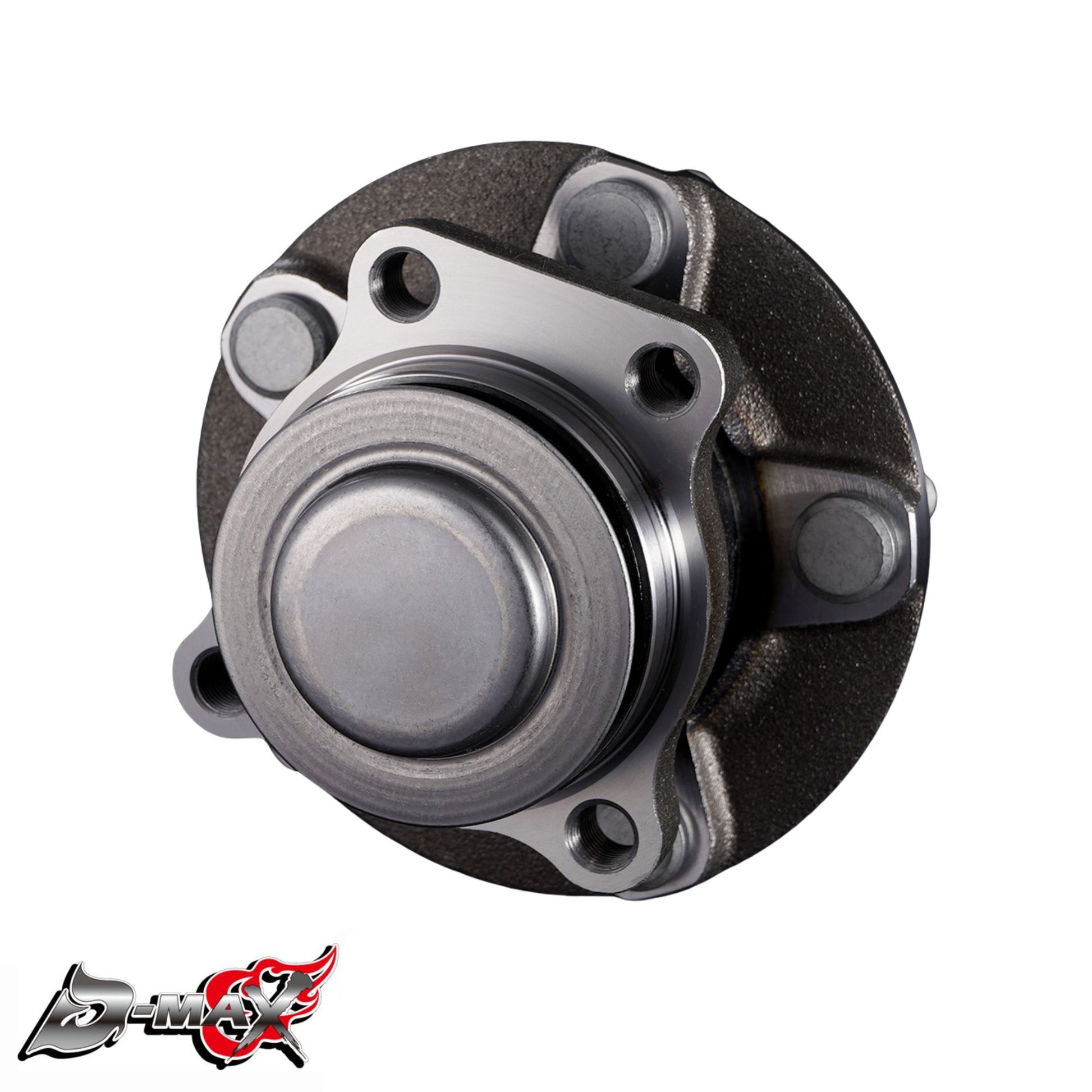

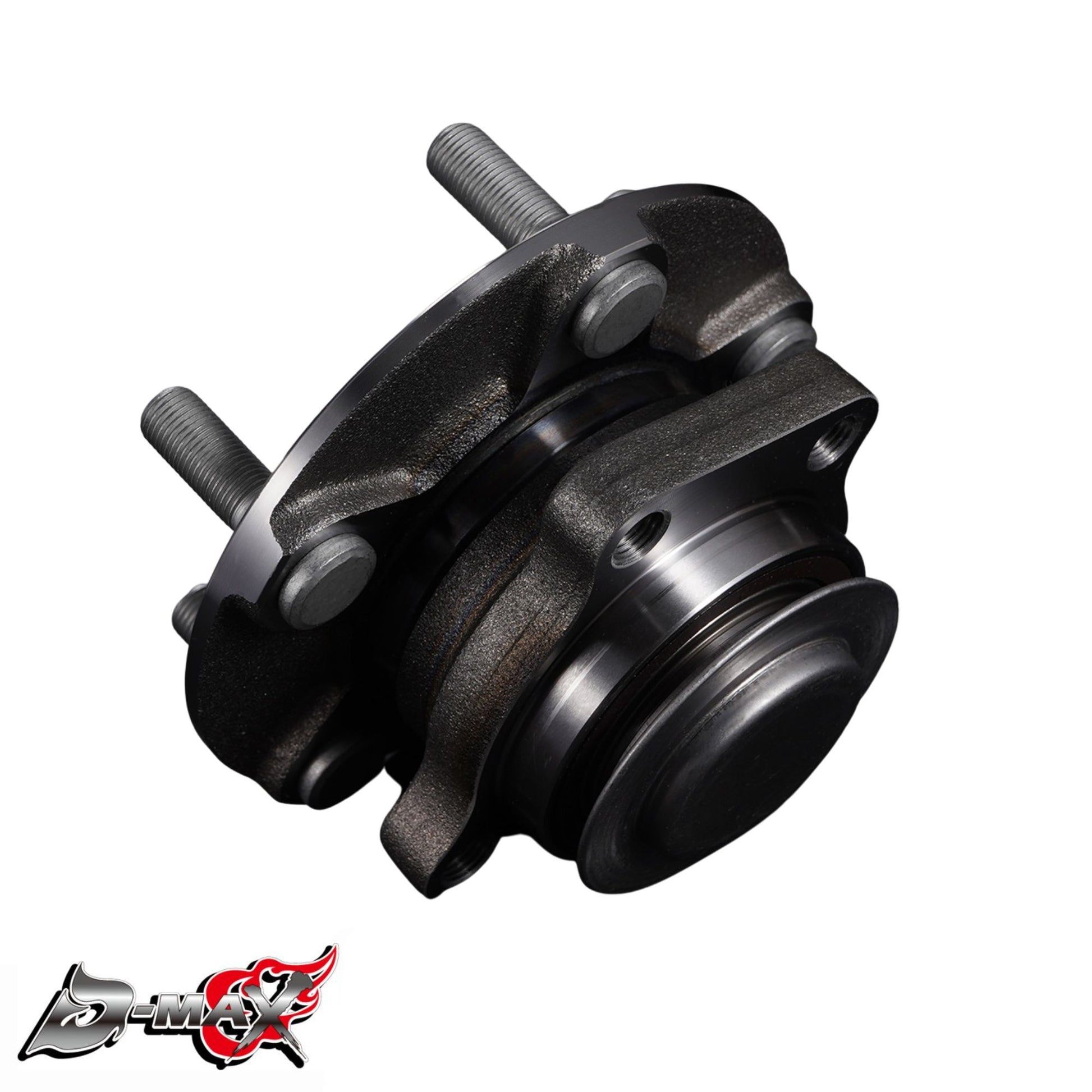

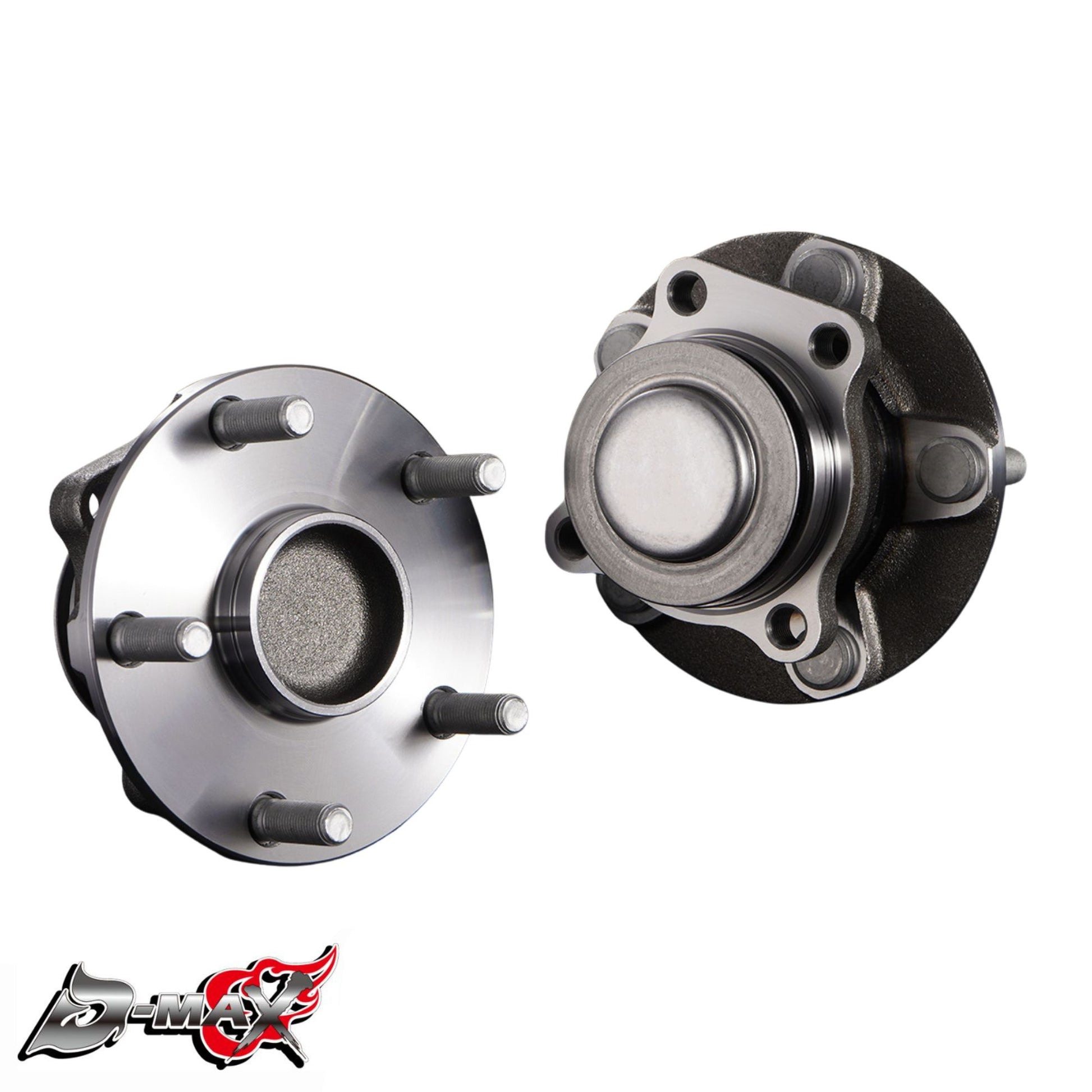

D-MAX D1SPEC Conversion Front Wheel Hubs

To suit Toyota GT86 (ZN6)/GR86 (ZN8) & Subaru BRZ (ZC6/ZD8)

x1 Unit per Order. TWO required for a single vehicle.

The D1SPEC front hub unit was released to solve the problem of not being able to find wheels due to the limited PCD100/5H standard. By changing from PCD100 to PCD114.3, the number of wheels you can choose from has increased dramatically. It is also perfect for those who are particular about design, light weight, and brand recognition. Manufactured using high-precision processing technology, it ensures strength and durability while maintaining genuine quality. It is suitable for a wide range of uses, from everyday driving to the circuit.

Product Specifications:

• SOLD AS x1 UNIT. TWO are required for one vehicle
• PCD: Convert 100-5H to 114.3-5H
• Hub Bolt Effective Thread: 26.0mm
• Stud Thread Pitch: M12×1.25mm
• Hub Bolt Serration Diameter: 14.3mm

*ABS operation confirmed.

*To install this product, the brake rotor must be changed to PCD 114.3. 114.3 rotors from the GDB Impreza Spec C E model and later can be used, but the rotor bell hat will interfere with the caliper, so you will need to grind down the caliper or use the entire Impreza caliper.

Compatible Models:

• GT86 (ZN6)
• GR86 (ZN8)
• BRZ (ZC6/ZD8)

*ZD8 not confirmed
