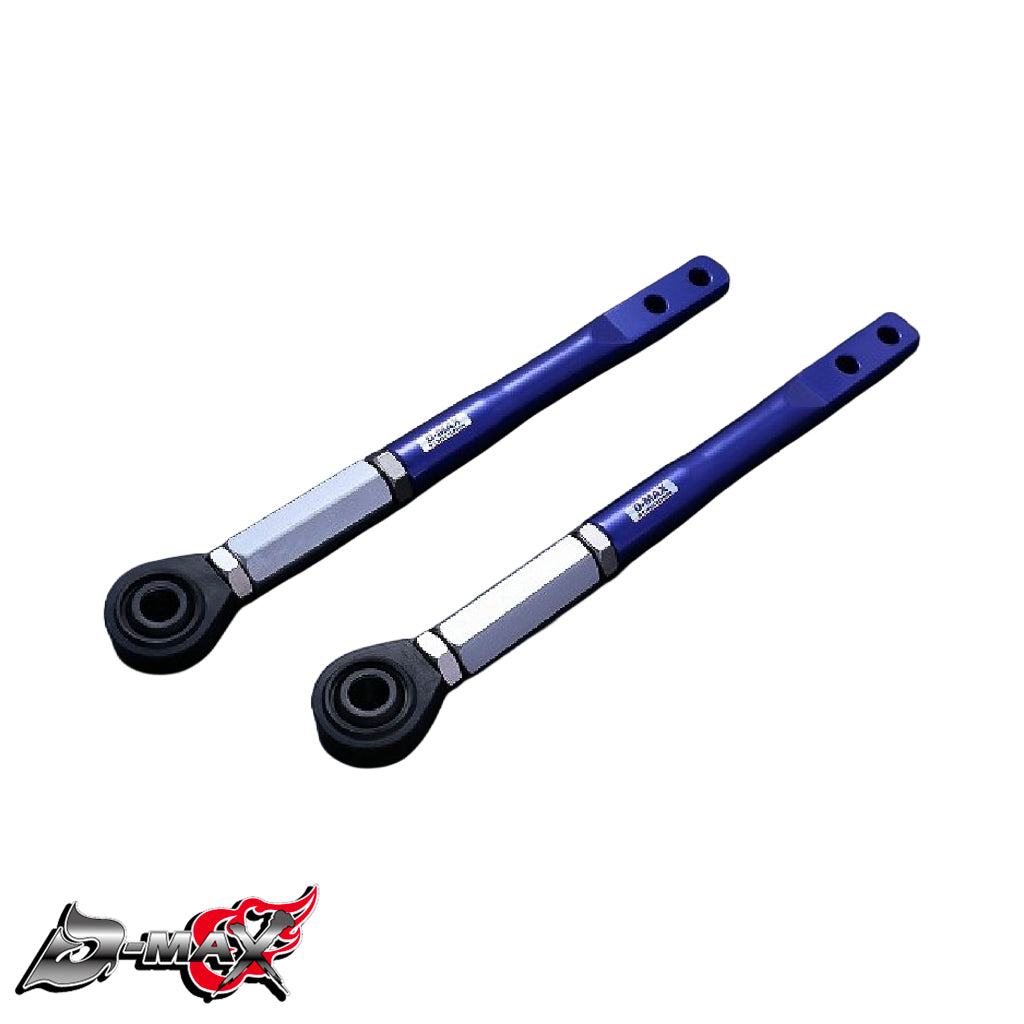

D1SPEC Front Tension Rod [V1] - S14/S15 Series
D1SPEC Front Tension Rod [V1] - S14/S15 Series
Regular price
¥26,620 JPY
Regular price
Sale price
¥26,620 JPY
Taxes included.
Shipping calculated at checkout.
Quantity
Available to Order
Couldn't load pickup availability
D-MAX Front Tension Rod V2 (Offset)
To suit Nissan Silvia S14/S15 and more
Replacing the original rubber bushings with pillow ball bushings significantly improves handling performance. The pillow ball design controls unnecessary movement caused by flexing during braking and drifting, increasing stability. Furthermore, the turnbuckle adjustment method allows for finer settings, which is useful for on-the-fly alignment adjustments. A pillow ball rubber cover is included as standard, significantly reducing the risk of gravel and other debris getting caught.
Specifications:
| Rod diameter | 28Φ |
| Pillow outer diameter | 45Φ |
| Pillow body diameter | 18Φ |
| Adjustment width | 30mm |
| Adjustment method | Turnbuckle type |
| Screw pitch | 1.5 mm |
Included:
- x4 Bolts
- x4 Nuts
- x4 Lock Washers
- x2 Collar (Small)
- x2 Collar (Large)
- x2 Pillow Ball Rubber Cover
Model Compatibility (S14 Series):
- Silvia S14
- Silvia S15
- Laurel C34
- Laurel C35
- Skyline ECR33
- Skyline ER34
- Stagea WGC34
*HNR32/BNR32/BCNR33/WGNC34 *4WD not compatible
