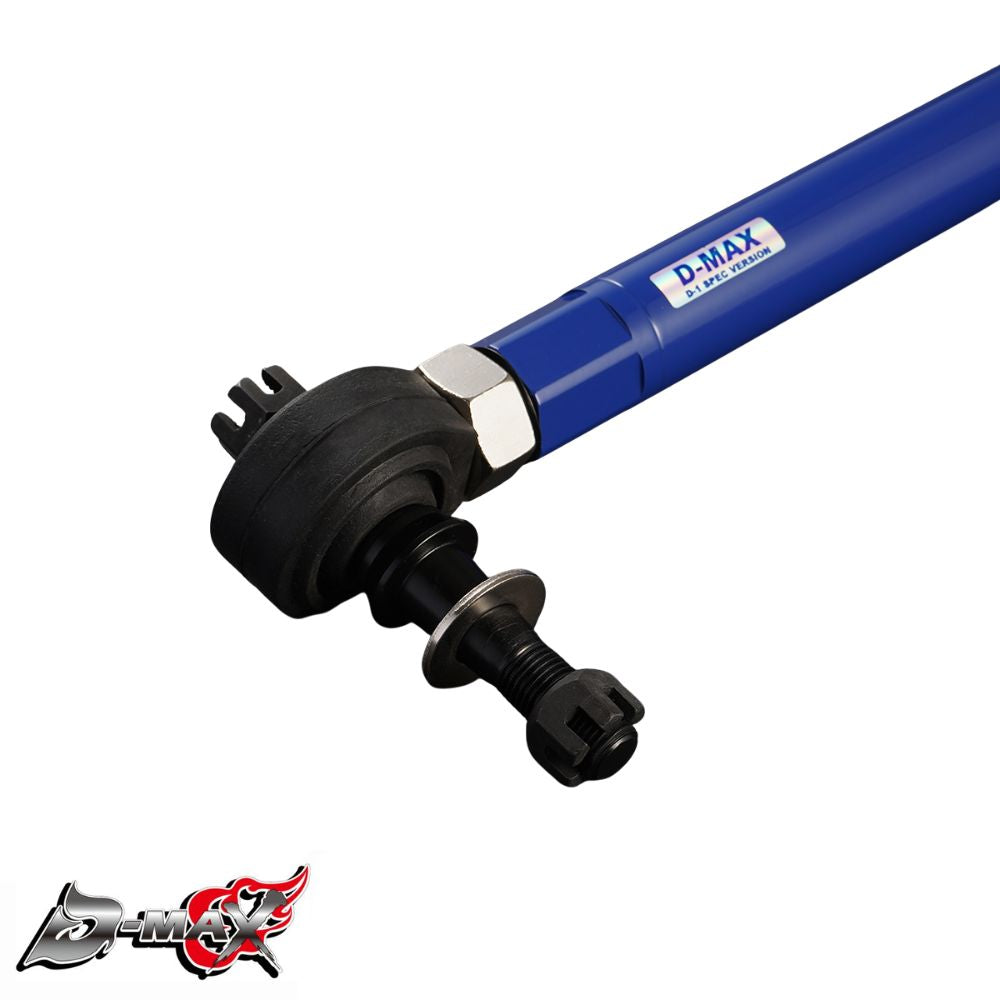

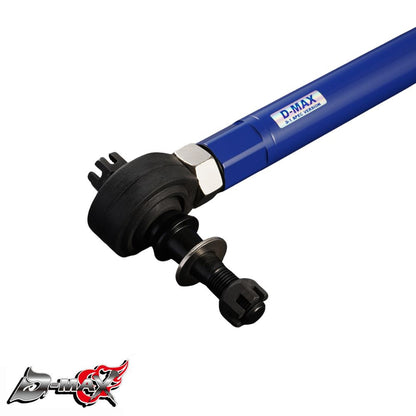

D-MAX D1SPEC Rear Toe Arm - Pillow Ball

To suit Toyota GT86 (ZN6)/GR86 (ZN8) & Subaru BRZ (ZC6/ZD8)

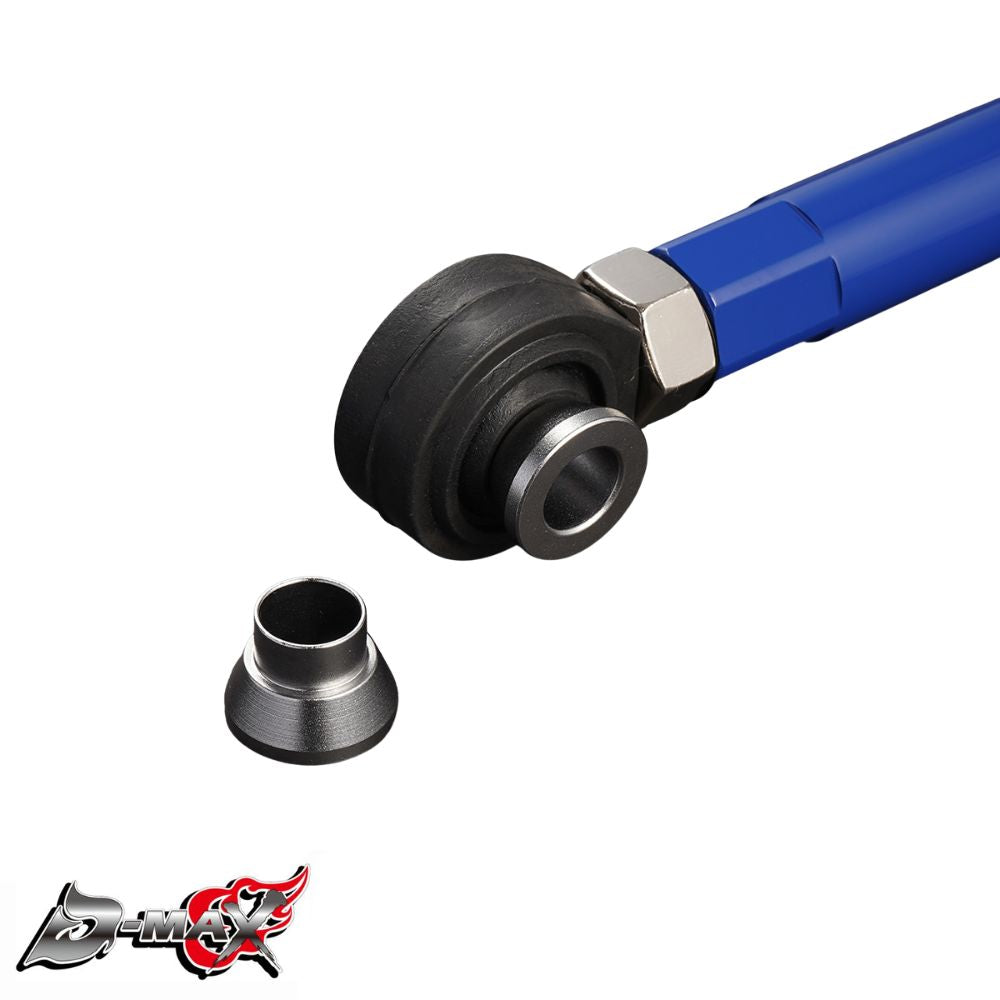

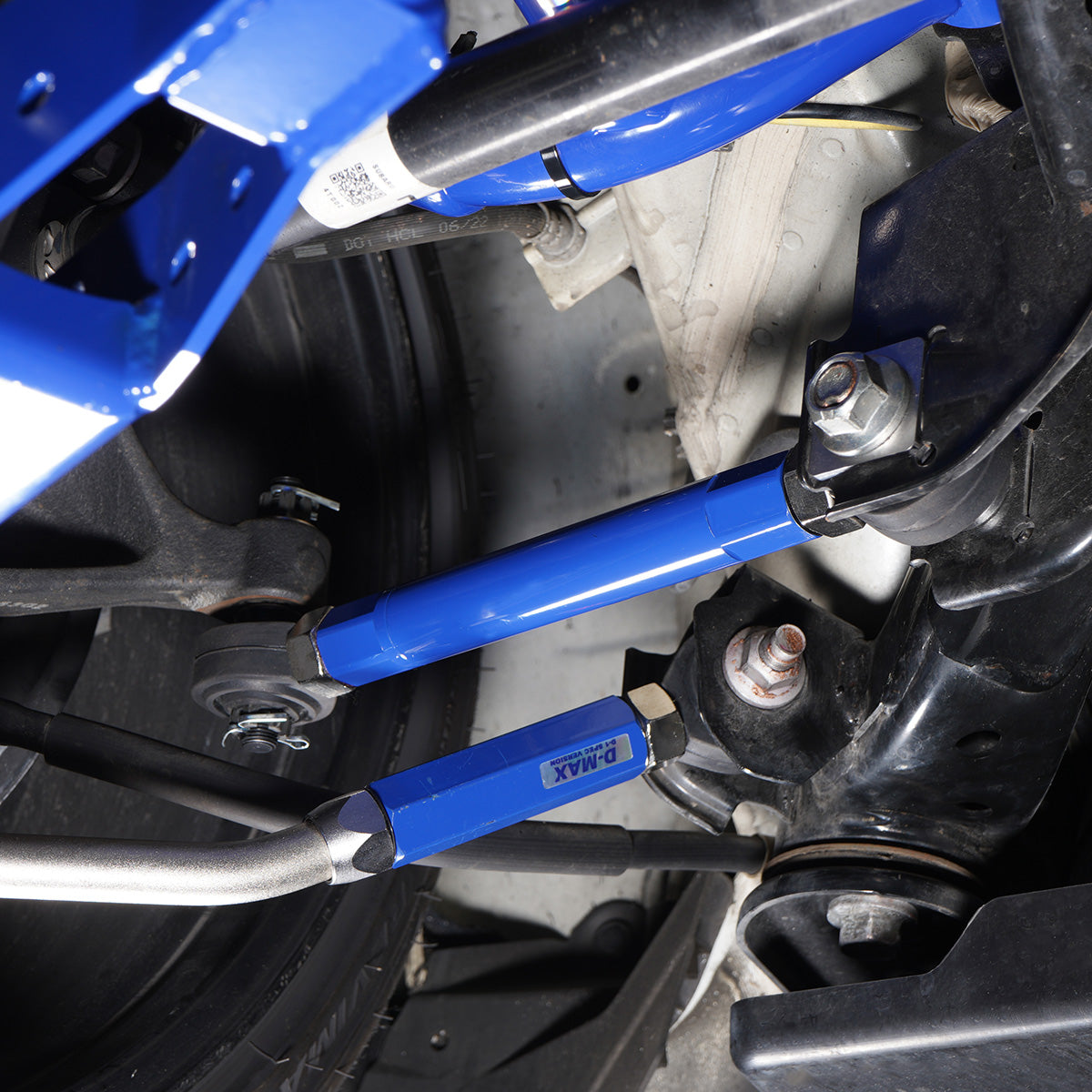

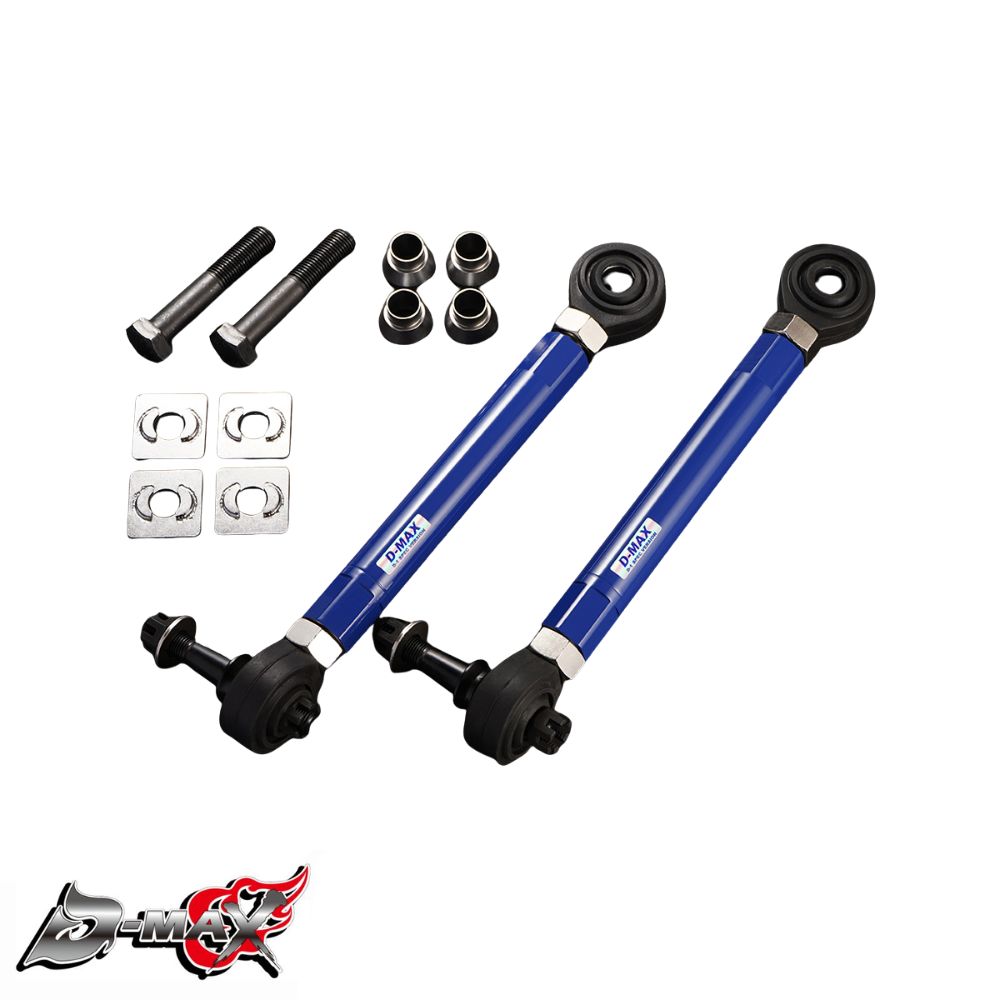

By switching to adjustable pillow ball arms, the unstable behavior of the rear suspension is corrected. By adjusting the toe angle, the characteristics of the rear understeer or oversteer can be changed. The rod itself is a turnbuckle type, allowing for adjustment even after installation. Since the member side and knuckle side can be adjusted to equal lengths, the load on the screw part, which is subjected to the most stress, is reduced. This allows for not only your preferred machine settings but also the ability to respond to sudden changes in road conditions. In addition, by attaching the included square toe rod plate, the toe angle will not shift even under the high loads of circuit driving.

This product was developed in collaboration with driver Kawabata, who drives an 86 in his private vehicle and participates in demonstration runs with TOYO Tires, as well as competing in the D1 GRAND PRIX series with a GR86.

Product Specifications:

Model Compatibility:

Toyota

• GT86 (ZN6) Zenki/Kouki
• GR86 (ZN8)

Subaru

• BRZ (ZC6) Zenki/Kouki
• BRZ (ZD8)
