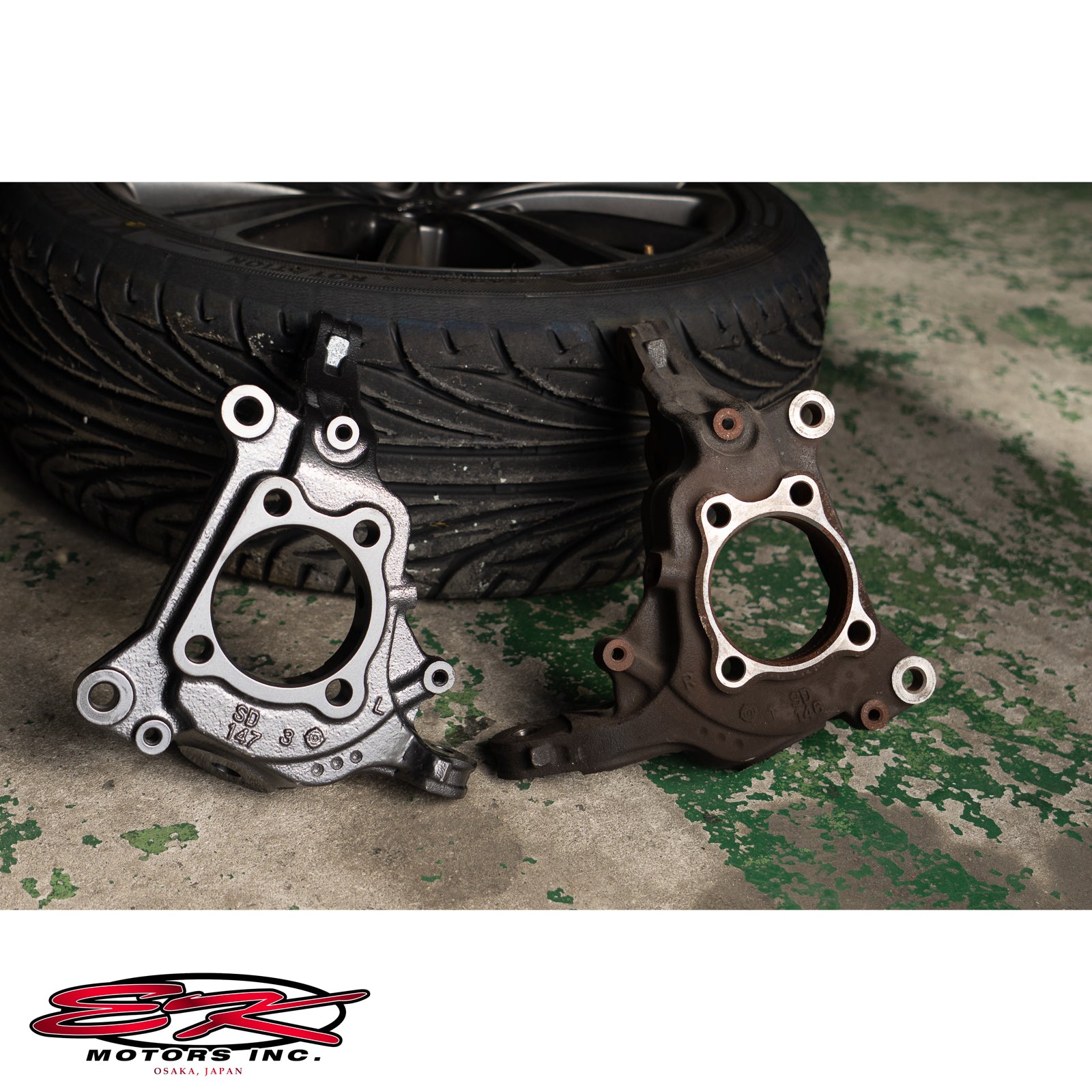

E.K Motors Shortened Drift Knuckle (V1.5)

To suit Toyota GT86 (ZN6), GR86 (ZN8) & Subaru BRZ (ZC6/ZD8) - NO CORE REQUIRED!

After extensive testing with many variants of cars, we have found the ideal, easy solution for knuckles. These will work with either a stock length lower arm, or with extended arms* and tie rod ends. Drivability is very easy, and suits any skill level or build.

*Our steering rack relocation subframe is recommended to prevent any steering binding on heavy angle. However binding rarely occurs with a stock setup.

Recommended Supporting Modifications:

• Front Wheel Spacers (>10mm) for inner frame rail clearance
• Cutting frame rail protrusion on door side of the wheel well
• As front camber adjustment is very limited, extended lower arms are recommended for a full "drift" alignment (extended tie rod ends will also be required - Kazama Auto is our recommendation)

Other Notes:

• A core will NOT be required - these will be prepared by us, and are included in the item price
• As cores are often used, some minor cosmetic blemishes may be present. Please be mindful of this when purchasing the Knuckles
• Knuckles will come painted in Gun Metal - Black is also available on request

When buying short knuckles don't forget to get extended tie rods.
