SR22 Stroker Kit
SR22 Stroker Kit
Regular price
¥0 JPY
Regular price
Sale price
¥0 JPY
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
In stock

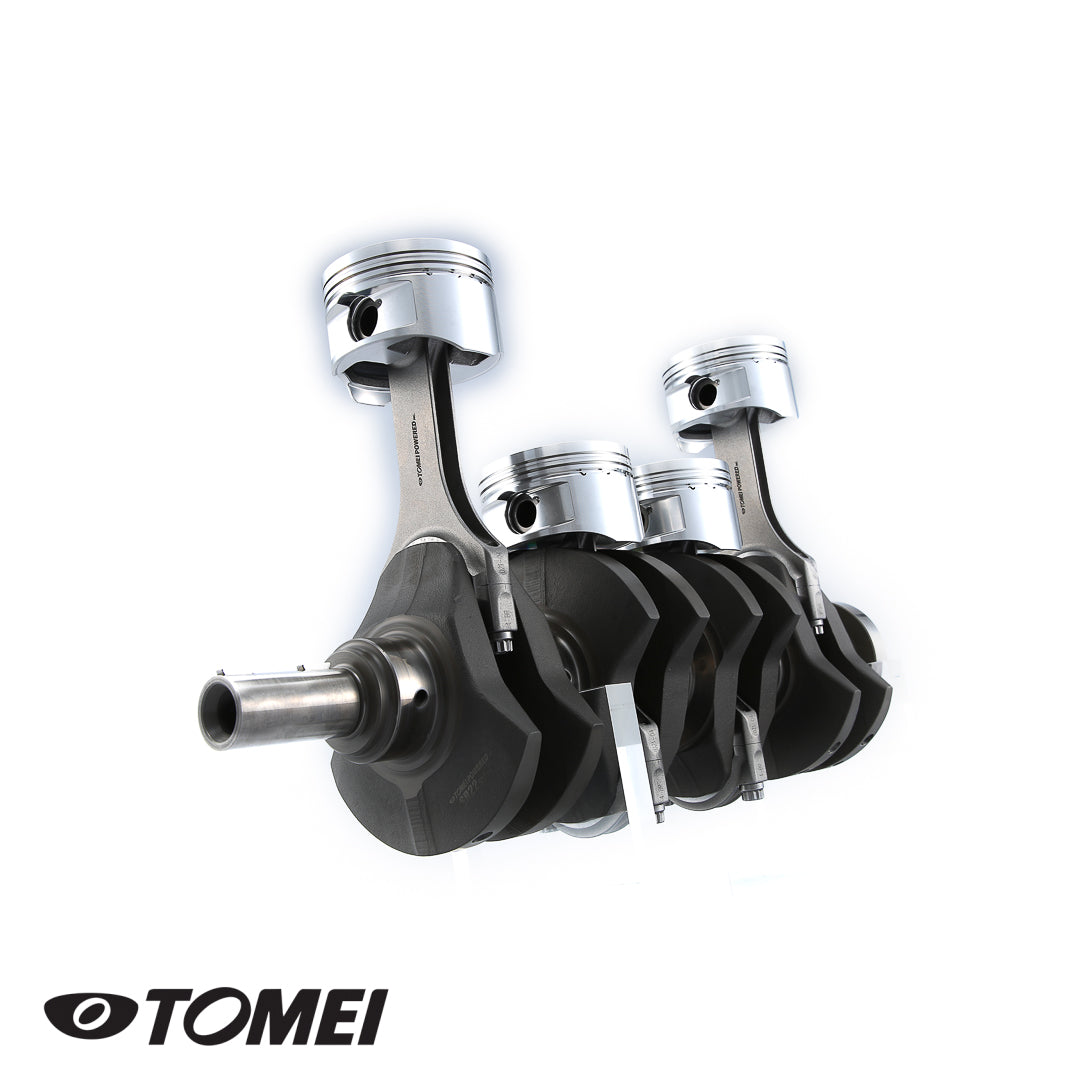

TOMEI POWERED SR22DET Stroker Kit
The engine displacement increase is made possible with the forged full counter crankshaft that has an extended 5mm stroke design. This kit also comes with our Forged Pistons.
Product Details:
PISTONS
|
Bore (Φ) |
Pin Dia (Φ) |
Length (mm) |
Recess |
Comp.Height (mm) |
PistonCrownVolume (cc) |
Weight (g) |
Pin weight (g) |
Total weight (g) |
|---|---|---|---|---|---|---|---|---|
| 86.5 | 22.0 | 60 | × | 29.5 | 18.0 | 323 | 113 | 436 |
| 87.0 | × | 18.0 | 329 | 442 |
| Top ring B×T(mm) | Second ring B×T(mm) | Oil ring B×T(mm) |
|---|---|---|
| 1.2×3.1 | 1.2×3.9 | 2.5×3.1 |
CRANKSHAFT
| Stroke (mm) | Weight (kg) | STD Stroke (mm) |
|---|---|---|
| 91.0 | 18.0 | 86.0 |
CONNECTING ROD
| Conrod | Conrod Bolt | Conrod Bearing | Material | ||||
|---|---|---|---|---|---|---|---|
|
Length (mm) |
L.Diam×Length (mm) |
S.Diam×Length (mm) |
Bolt Size |
Height Under Neck (mm) |
Inner Circum (mm) |
Bearing Width (mm) |
|
| 136.3 | φ51×22.8 | φ22×22.8 | 3/8-24 | 40 | 48 | 17.0 | SNCM439 |
*Please include "data" media here
