Full Cast Turbo Outlet Pipe (Skyline GTR R32/R33/R34 '89-'02)
Full Cast Turbo Outlet Pipe (Skyline GTR R32/R33/R34 '89-'02)
Couldn't load pickup availability
In stock

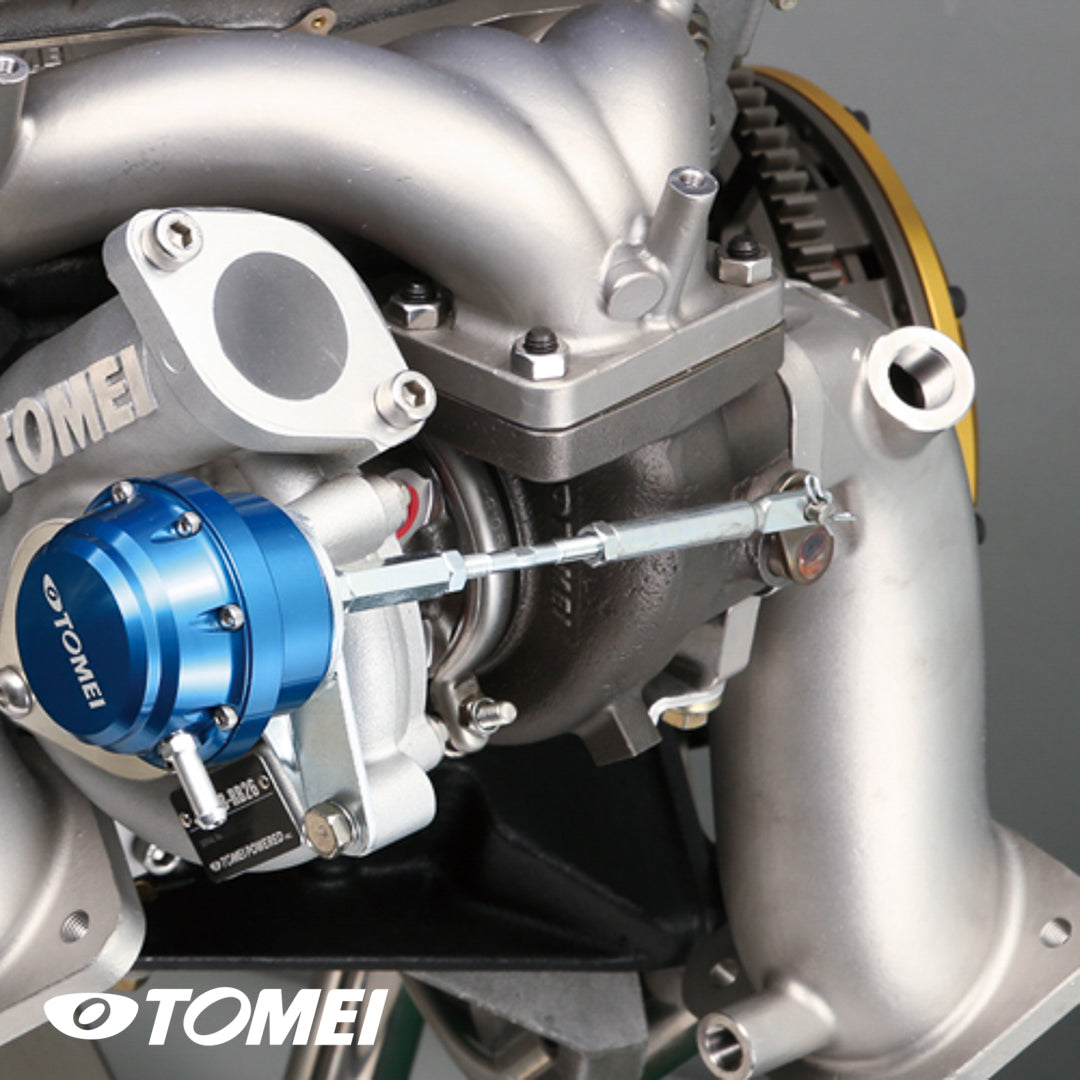

Applicable to vehicles with the RB26DETT engine.
The stock turbo outlet tends to build up too much secondary back pressure due to its restrictive capacity.
The new design is capable of supporting even higher flow compared to the previous model by re-engineering the whole design and removing the intake / compressor housing relieves.
The new model is designed to clear the air intake piping and the turbo compressor housing without the concaves from the previous model that helps even smoother exhaust flow. The new model is made of high quality SUS316 material instead of the SUS304 from the previous model to withstand even more severe conditions.
| TOMEI | STD | |||||
|---|---|---|---|---|---|---|
| SUS316 Full Cast | BNR32/BCNR33 | BNR34 | ||||
| Fr | Re | Fr | Re | Fr | Re | |
| MATERIAL | SUS316 | CASTED STEEL | PRESSED & WELDED | |||
| EXIT DIA. | approx.Φ66 | approx.Φ58 | approx.Φ55 | |||
| VOLUME | 800cc | 900cc | 630cc | 730cc | 600cc | 725cc |
| PIPE THK. | approx.2.8mm | approx.4.5mm | approx.2.0mm | |||
| FLANGE THK. | approx.11mm | approx.11～14mm | approx.11.6mm | |||
| WEIGHT | 1.85kg | 2.10kg | 2.3kg | 2.7kg | 1.75kg | 1.9kg |
Wrenching clearance for easy installation.
Designed to be a hassle free installation. We have incorporated a dimple in the pipe where the bolt for the flange is located. To allow ease of access to both bolts and nuts to allow a quick, trouble free bolt on application.
Wide mouth design & Step-less connection with a 70mm front pipe.
Dumps the exhaust gas from the turbo straight onto the front pipe without reducing the flowing speed.

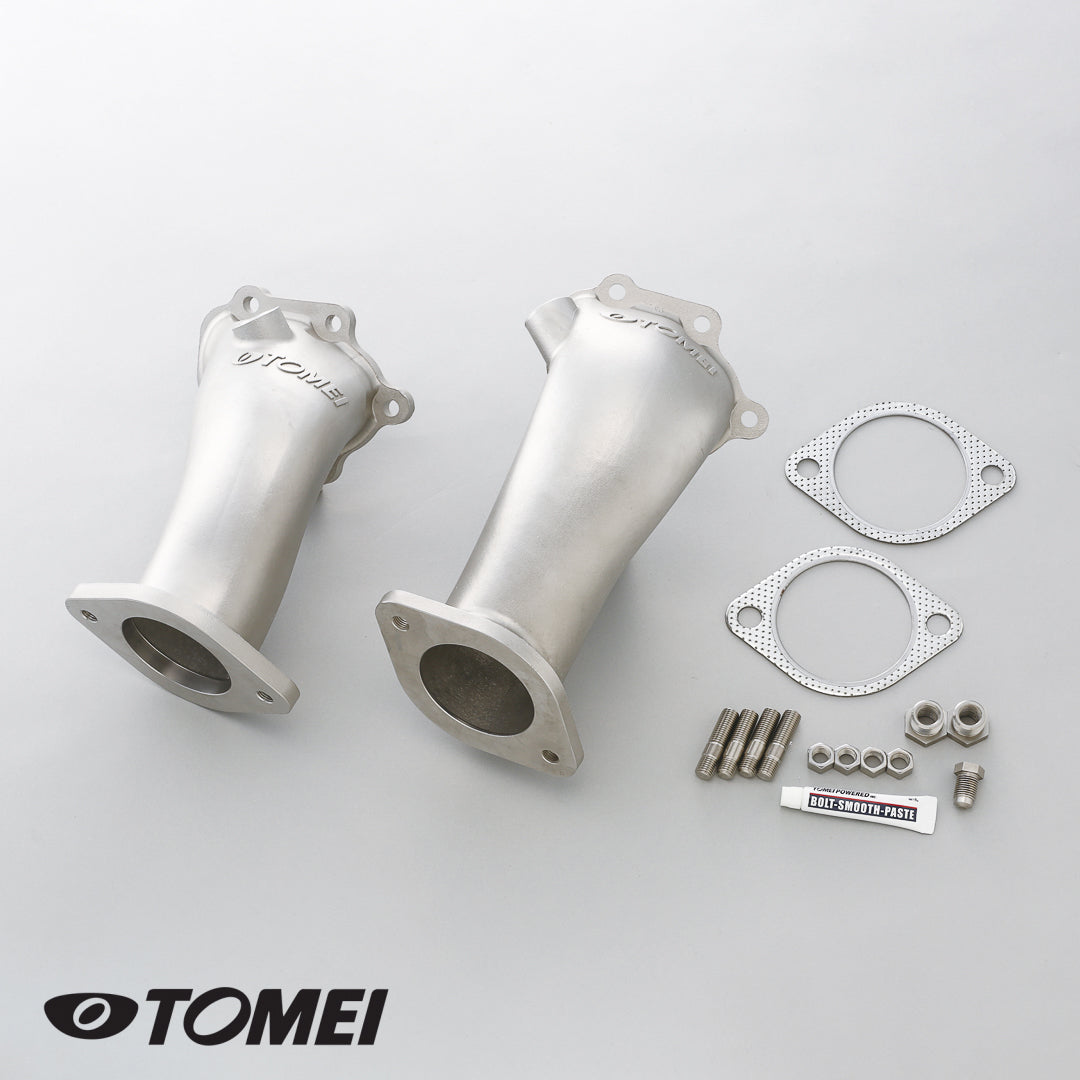

What's Included:
- OUTLET PIPE(FRONT SIDE/REAR SIDE)
- OUTLET GASKET（FRONT PIPE SIDE）
- BLIND BOLT
- NUT
- O2 ADAPTER
- STUD BOLT
