Front Fork Seal Kit / Full Rebuild - Honda OEM

To suit Honda VFR400R-III (K) ('89)

This kit will only work with the non-cartridge forks found in the early (K) models. This can be easily distinguished by the single adjustment present on the top of the fork, compared to the dual adjustment found on the late model (L, N, '90-)

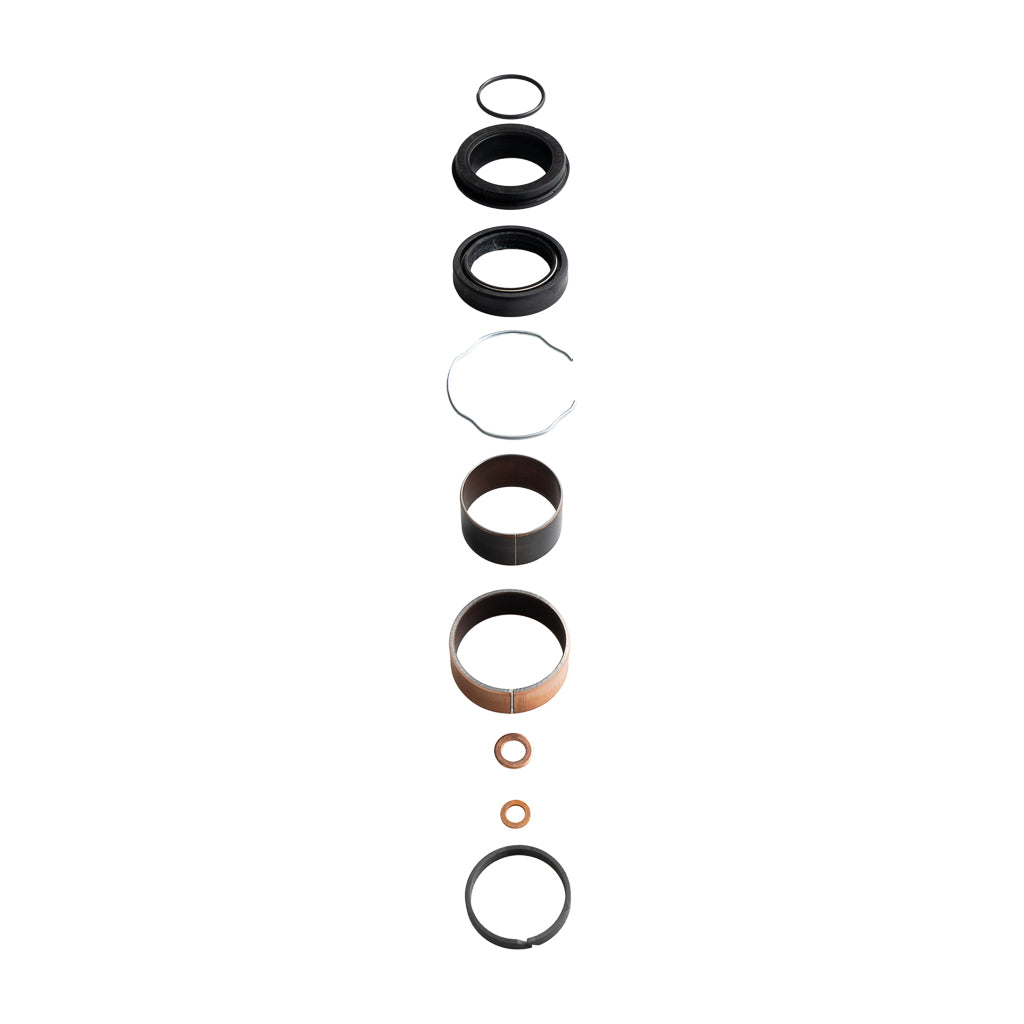

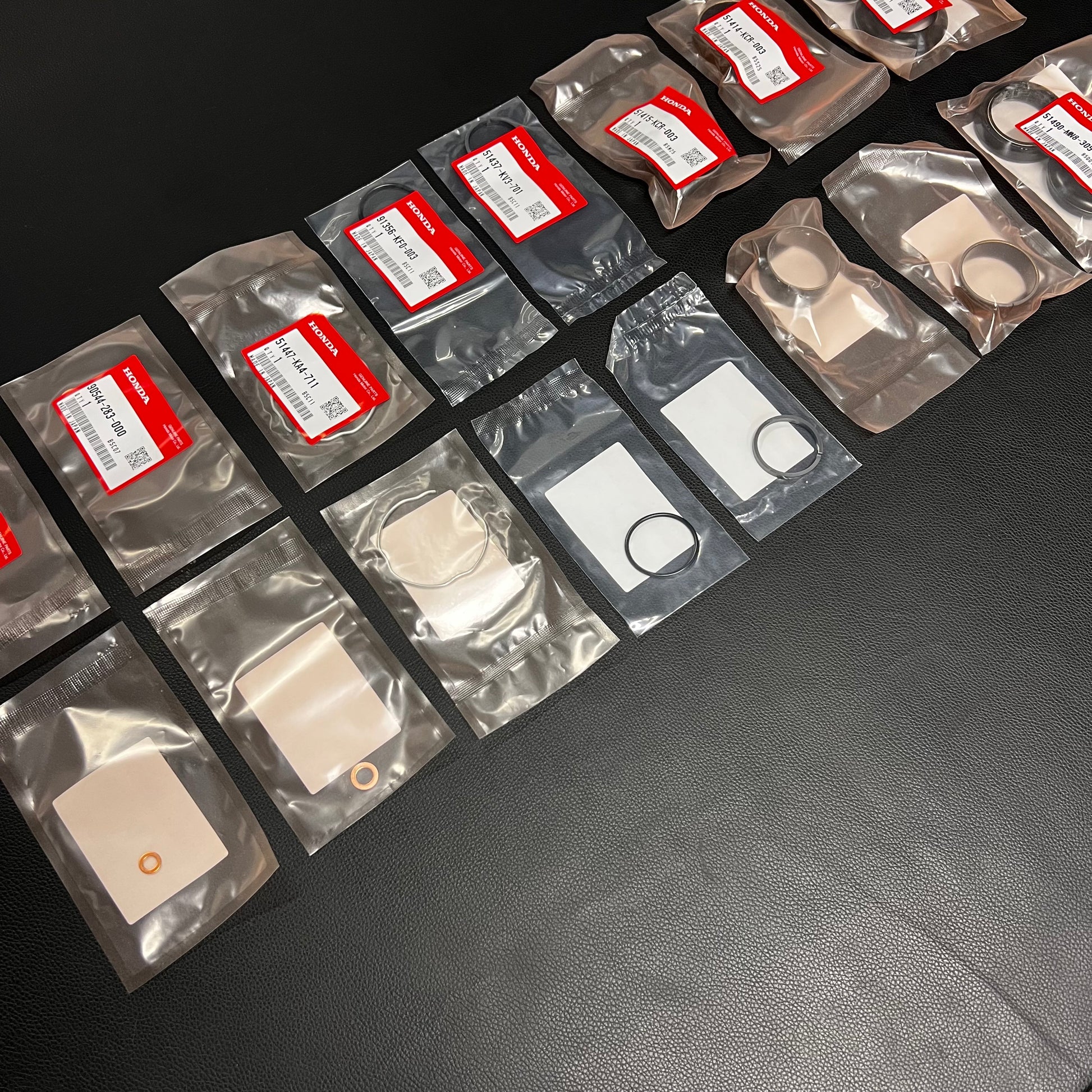

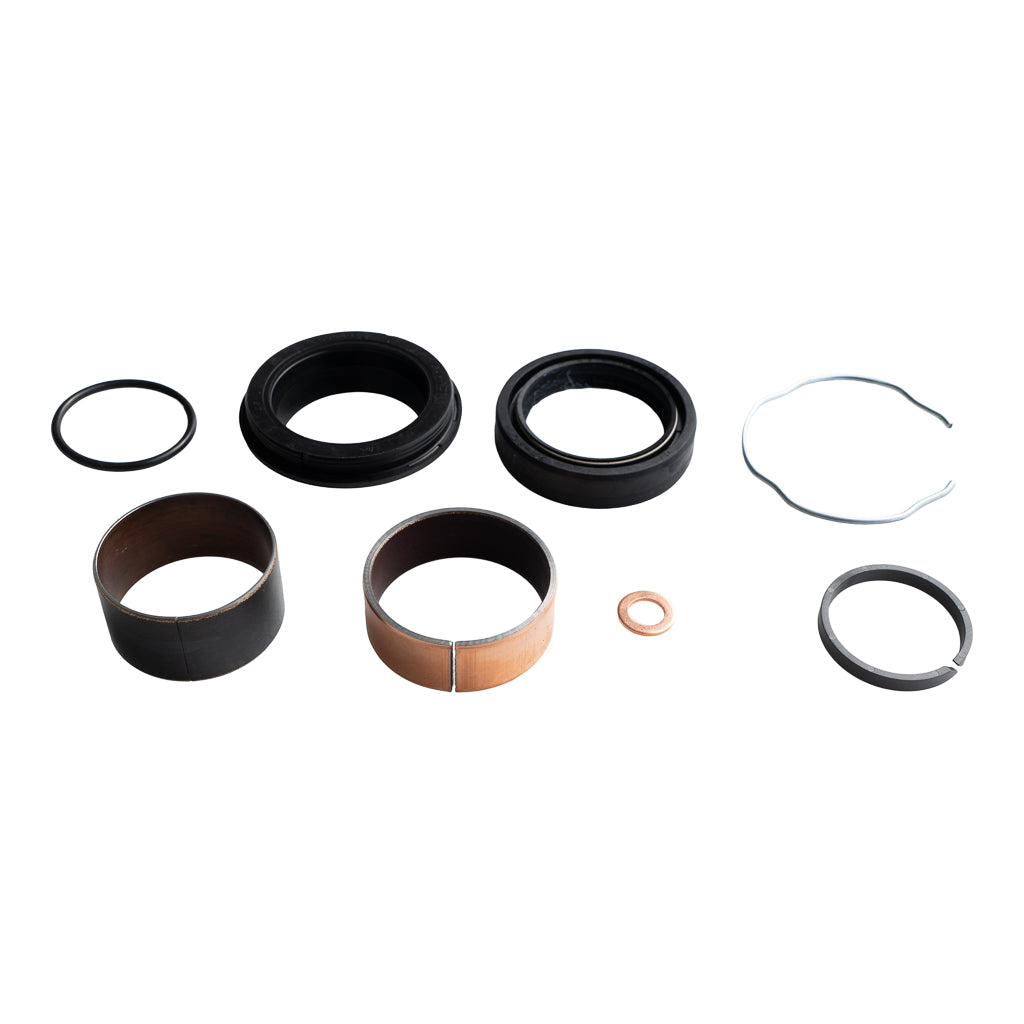

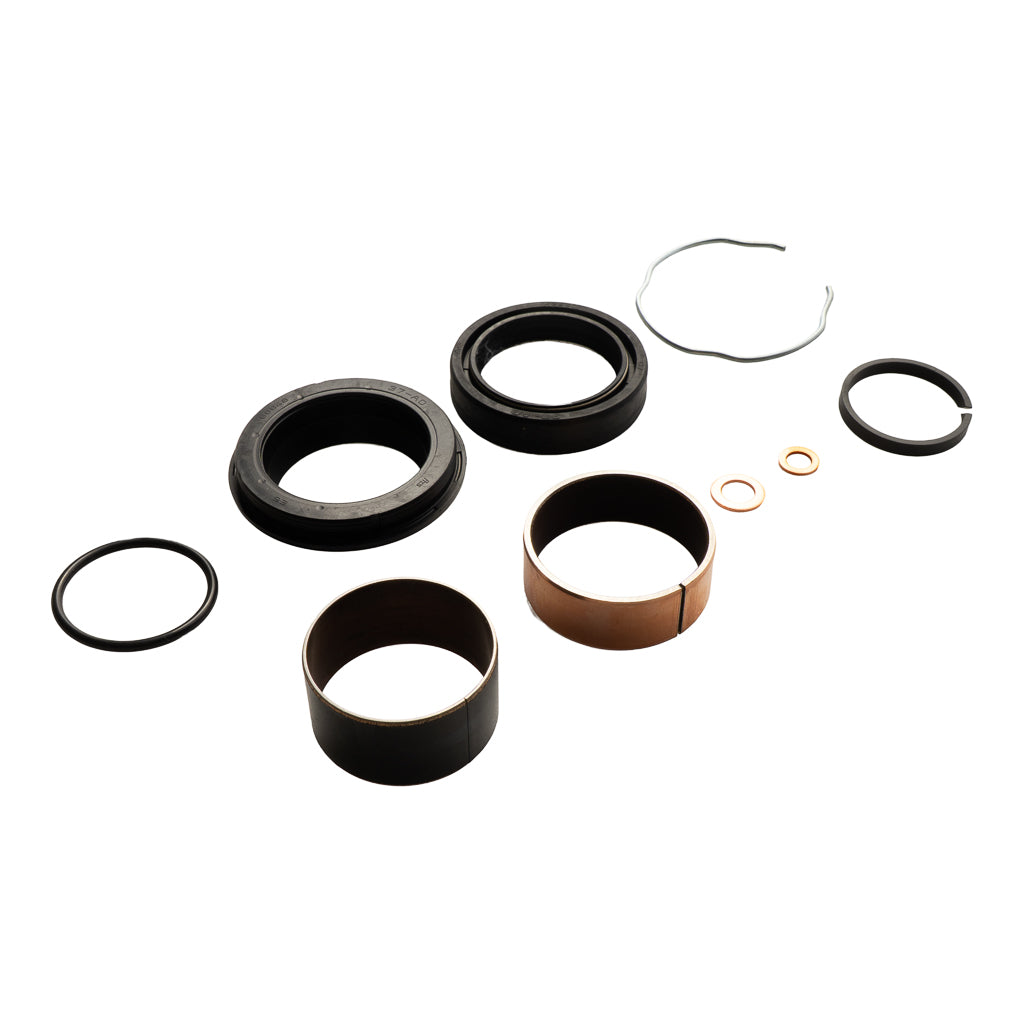

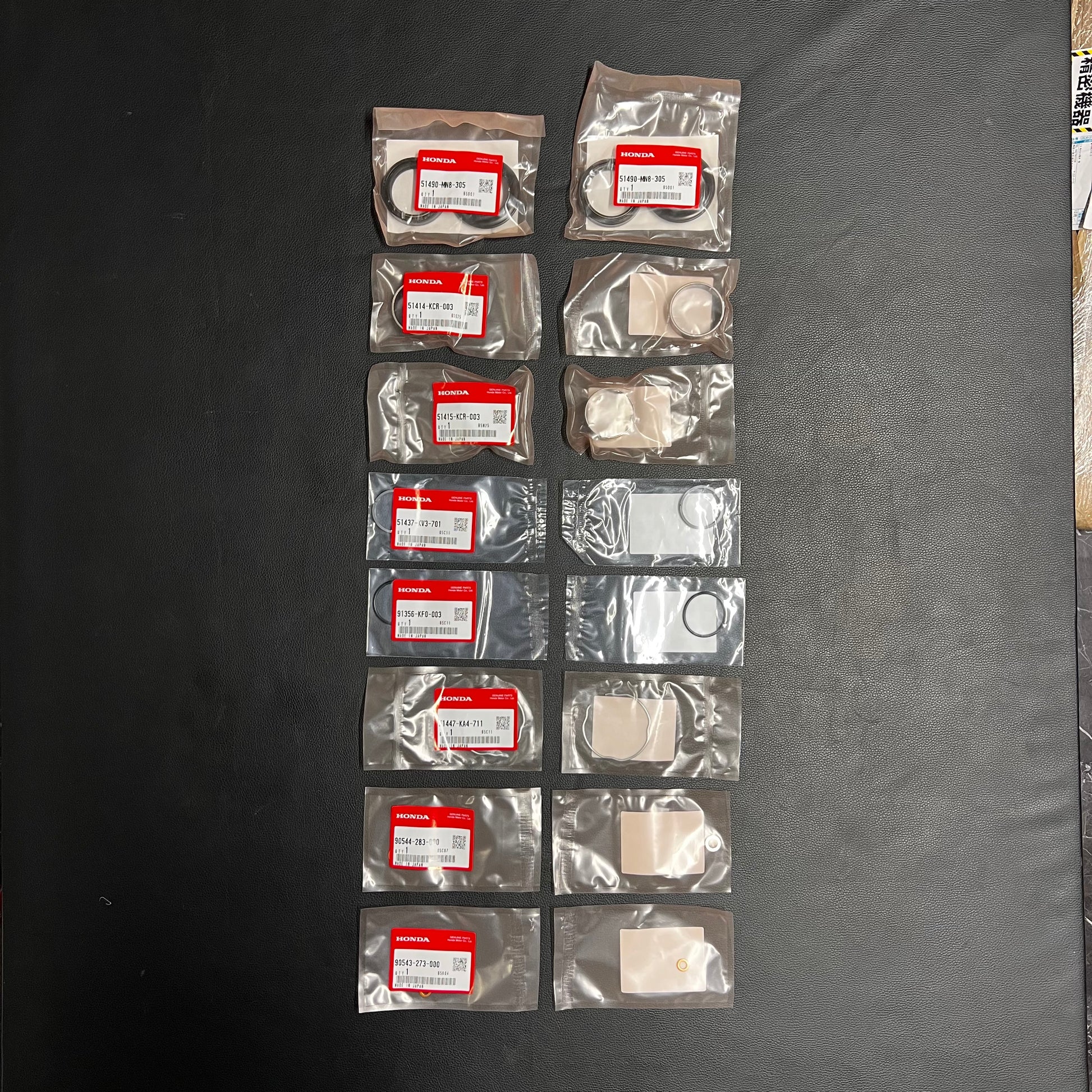

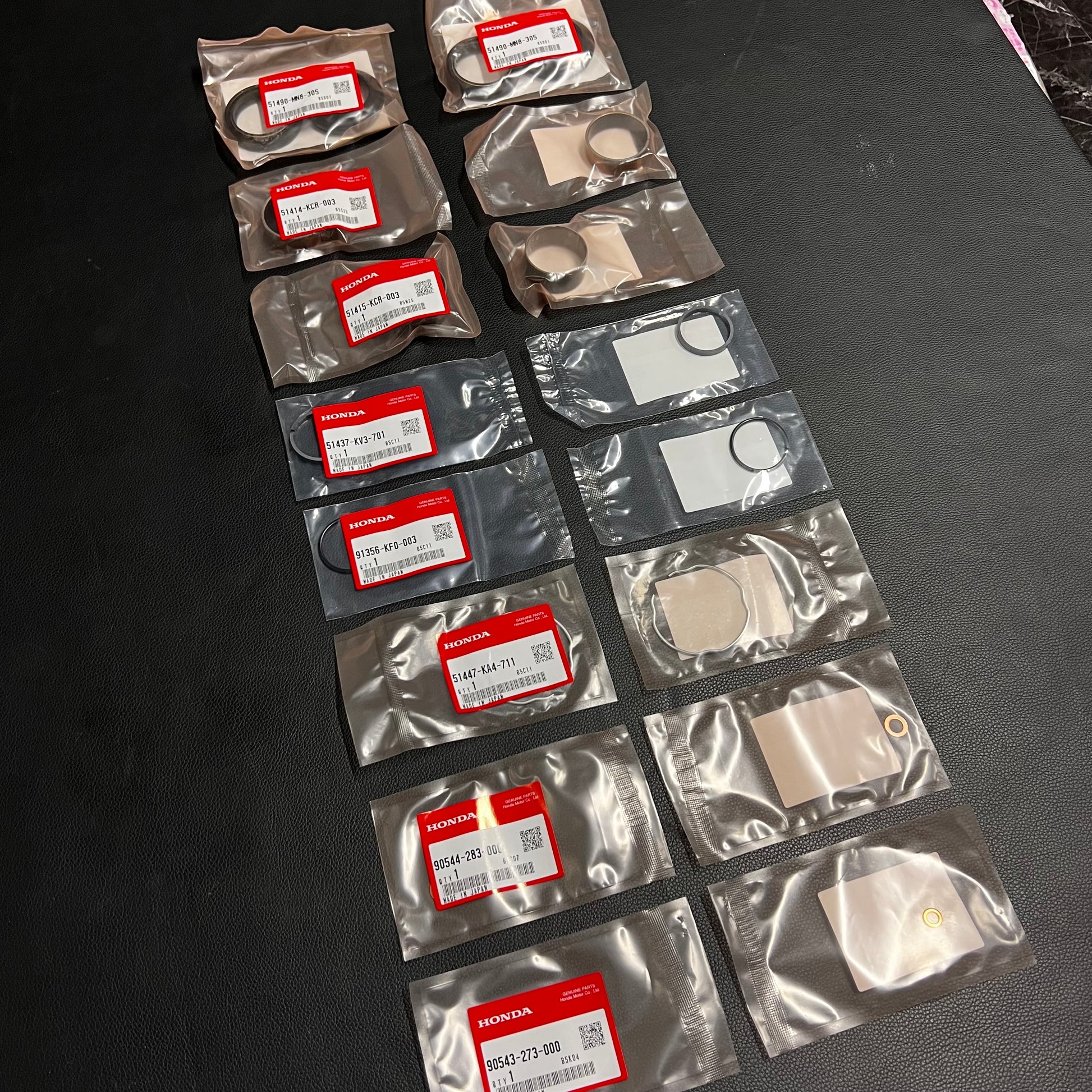

Included:

• 91356-KF0-003 (x2)- Top Cap O-Ring
• 51490-MN8-305 (x2) - Dust/Oil Seal Set

• 51447-KA4-711 (x2) - Oil Seal Retaining Clip
• 51414-KCR-003 (x2) - Guide Bush (Superseded from: 51414-MN5-003)
• 51415-KCR-003 (x2) - Slider Bush (Superseded from: 51415-MM8-003)
• 51437-KV3-701 (x2) - Piston Ring
• 90544-283-000 (x2) - Bottom Crush Washer (8mm)
• 90543-273-000 (x2) - Drain Bolt Crush Washer
